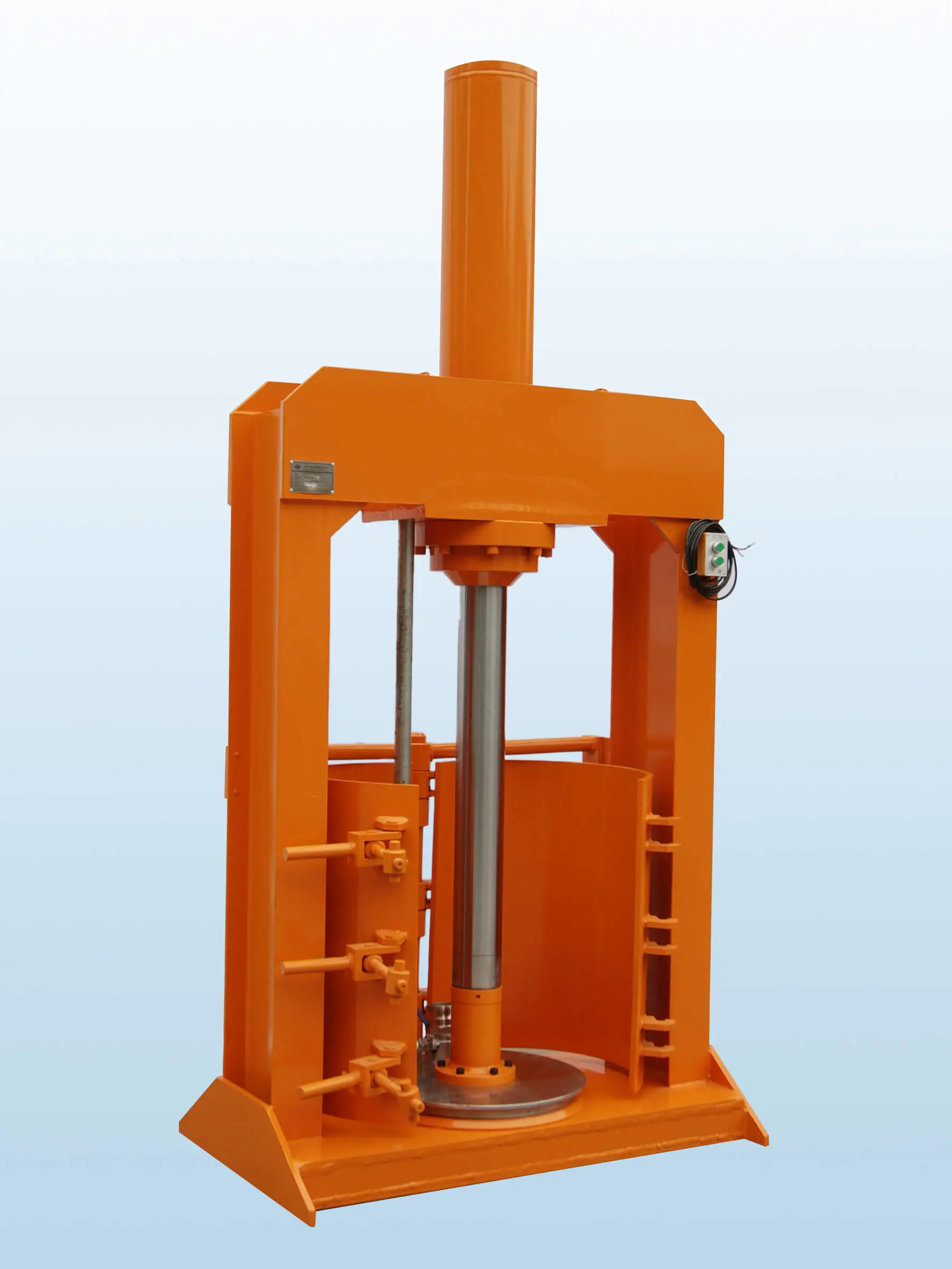

Hydraulic Press

The 200L hydraulic discharge machine is our company's new type of hydraulic discharge  machine, and the clamping barrel is a two-page holding barrel type. Compared with glue pressing, the residual amount is less and the requirements for the barrel are more relaxed.

Technical Parameters:

--Rated voltage:AC380V three-phase five-wire system

--Voltage frequency: 50Hz

--Motor resistance: 5.6KW motor + 17cc/r

--Hydraulic pressure:Working pressure 13MPa

--System pressure: 16MPa

--Press barrel capacity: 200L

Hydraulic oil:

--The southern area uses the equivalent of ISO VG32-46# Shiji anti-wear hydraulic oil

--The northern area uses the equivalent of ISO VG32-32# Shiji anti-wear hydraulic oil

--Cooling method: Water cooling system

--Equipment power: 6KW

--Equipment net weight: 1.6T

--Dimensions: 1300*850* 2800mm
